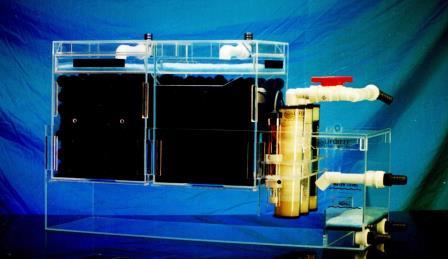

Side-by-Side Tower Configuration
Split Tower Configuration
(Filter model numbers indicate the maximum size aquarium the filter can be used on.)
|About Lifereef Trickle Filters|
|Lifereef Trickle Filter Features|

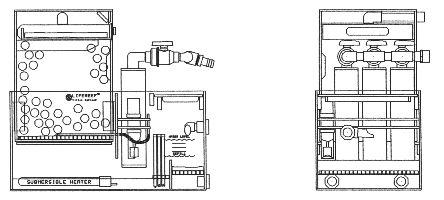

|View Drawing of an LF2-75/125, and 150 Trickle Filter|

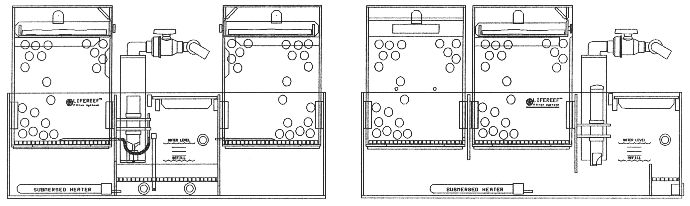

|View Drawing of an LF2-200/240, and 300 Trickle Filter|
|LF2-75/125||24L x 14W x 22H||single tower||6.5 gallons|
|LF2-150||30L x 14W x 22H||single tower||8.8 gallons|
|LF2-200/240||36L x 14W x 22H||dual towers||13 gallons|
|LF2-300||40L x 14W x 22H||dual towers||15.5 gallons|

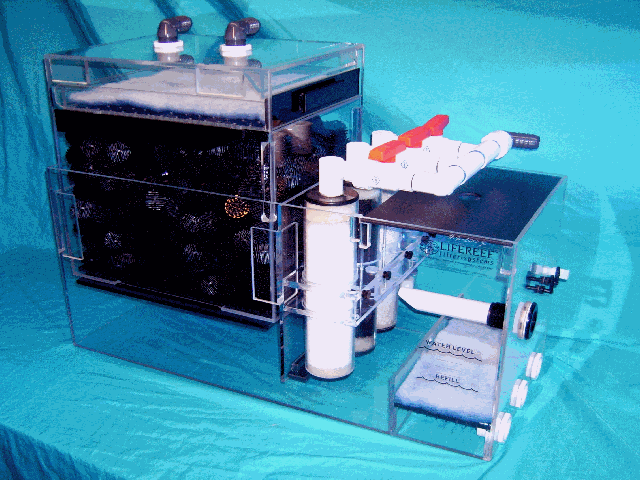

The Lifereef trickle filter is unique from many others in that we utilize an engineered Slide-Out Drip Tray Drawer instead of the rotating spinner bars or flat drip plates. This engineered design allows high water flow rates, eliminates rotating spinner bar breakdown, eliminates flat drip plate warp and virtually NO SALT CREEP! This unique drawer design reduces salt creep and salt build-up thus maintaining stable salinity readings. Go into any aquarium store and look at how messy those other filters are, salt everywhere!
Another unique and versatile feature is the in-sump accessory shelf. This shelf can hold up to 3 Filter Cylinders or canisters and an array of electronic probes or electrodes. The filter cylinders can be used to hold filter media such as nitrate and phosphate removers, carbons, resins, poly discs, or anything that you want to put in them. And if you like to monitor your aquarium water parameters with probes the accessory shelf can accommodate up to four of these.
The Lifereef Trickle Filters were designed to eliminate or reduce two common problems that many other filters have; acrylic warp and salt creep. Warp occurs because the filter is not reinforced or because of thin acrylic being used for construction. We use 1/4" thick acrylic for sump and tower construction and 1/4" thick ABS for our sump covers, not thin vacuformed plastic. Salt creep occurrs because of excessive clearances (mass-produced filters allow this because tolerances are not that critical) or parts that fit too close. Lifereef Trickle Filters have been specially designed to prevent the salt problems. Go check out any filter in any store and see how much salt accumulates on the outside of the filter. Our filters require no external cleaning at all, unless of course you splash something on them!
The Lifereef trickle filters have been provided with bulkhead fittings for a main system pump, protein skimmer pump, protein skimmer return, reverse osmosis feed, calcium reactor hookup, mounting bracket for filter cylinders, probes/electrodes, and sump cover(s) and even the addition of a LifeReefugium. A Lifereef sump that is as versatile as your imagination!
FRESHWATER USE!!! The LF2 Trickle Filters are an excellent filter to use for freshwater too! Much better water quality compared to undergravel or any canister systems! Easier to maintain, faster to clean, better water quality! No special modifications are needed, the standard LF2 is ready to go for freshwater too!
